SWB/LWB Vehicle - Sliding Tray + Second Level Fixed Platform 1200mm Wide x 1400mm Deep

Note* This product is for collection only from Blok HQ, Delivery currently not available. This product is made to order, lead time 7-10 working days.

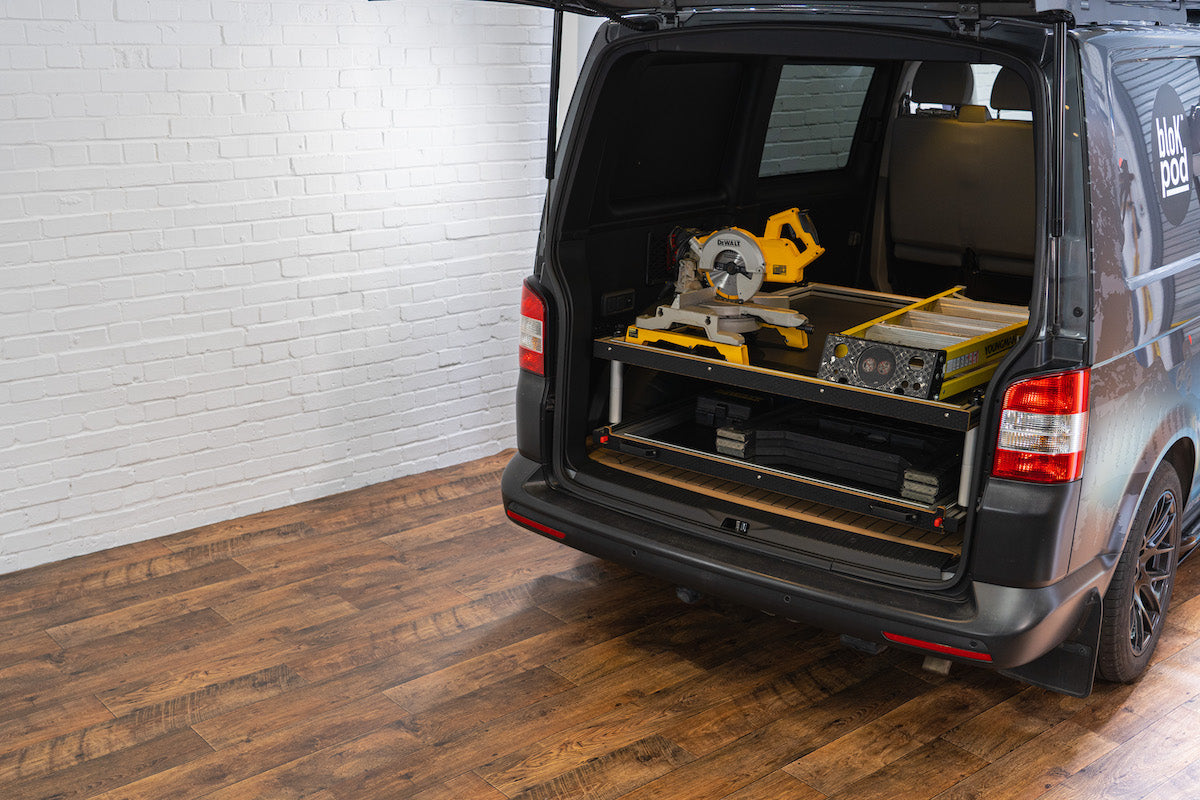

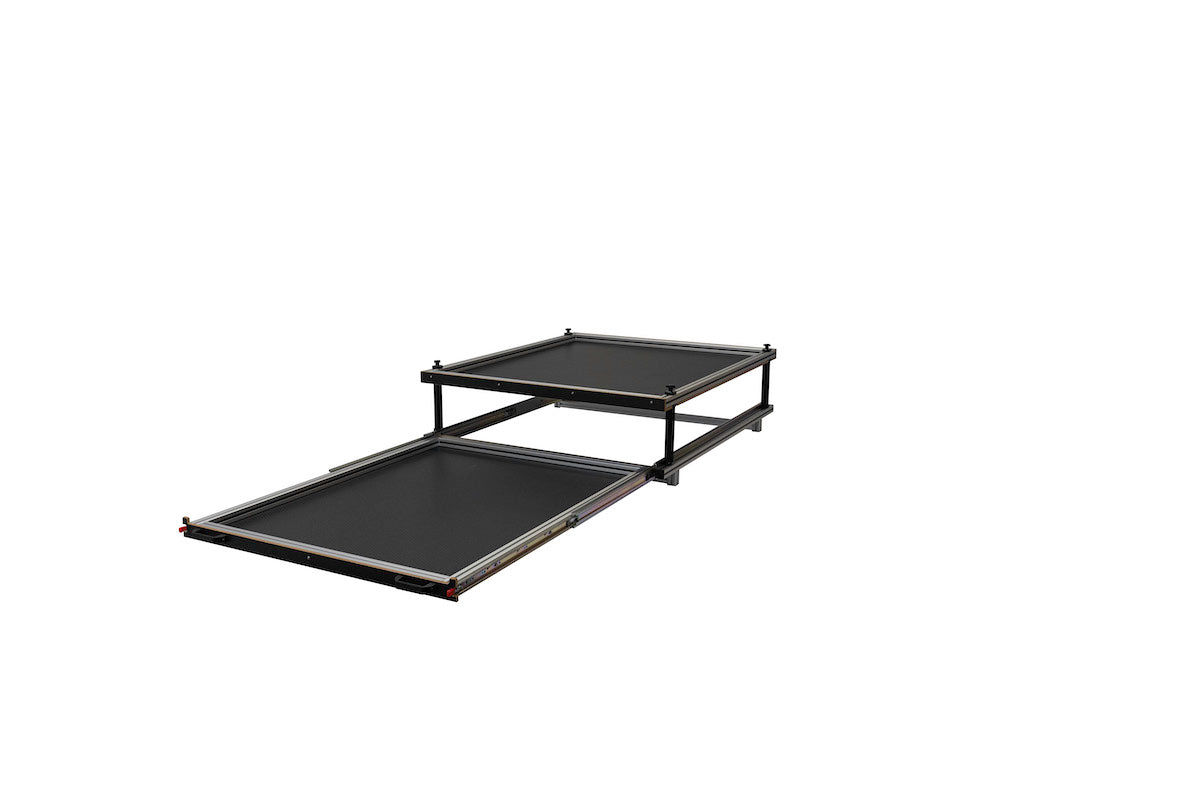

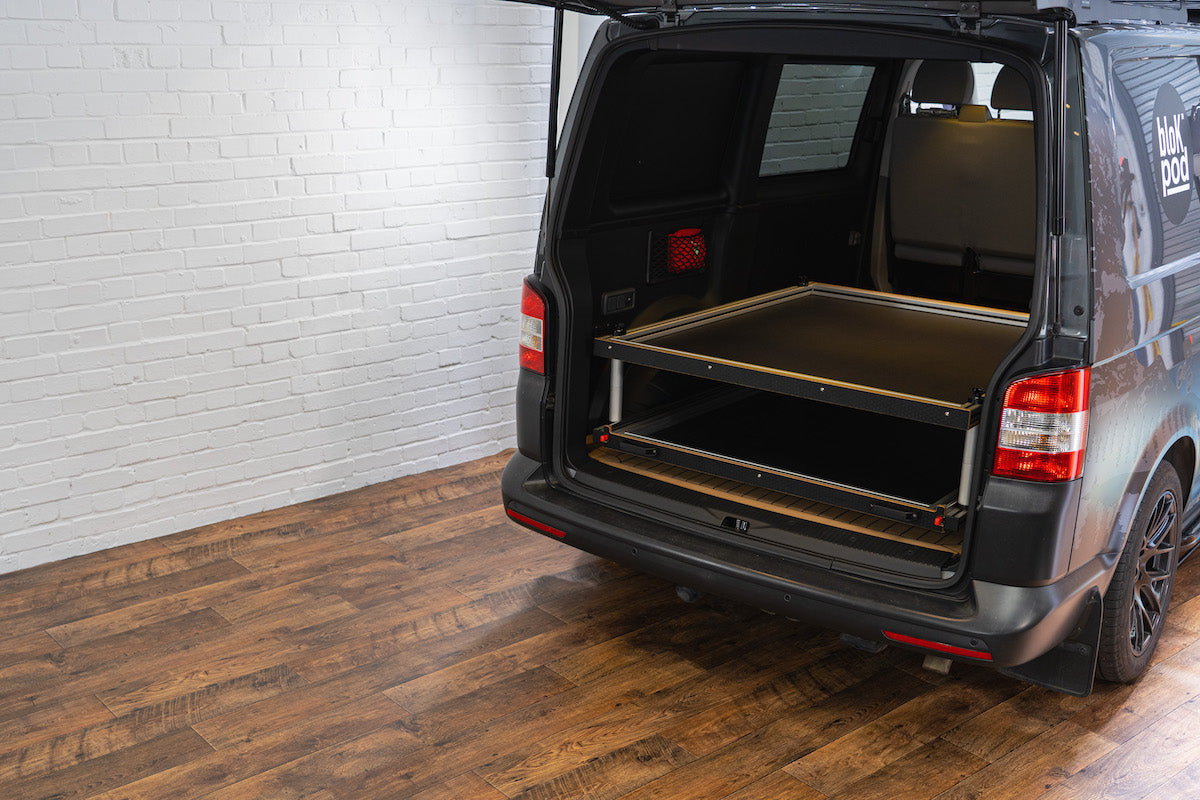

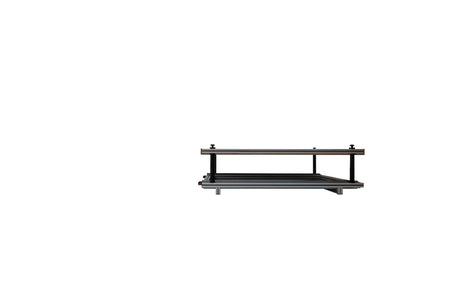

This ones a bit different, a sliding tray on the bottom for all your bits with a second level fixed platform, the second level functions exactly the same as the sliding tray without the sliding bit ;-) it just gives you the double decker without the extra cost.

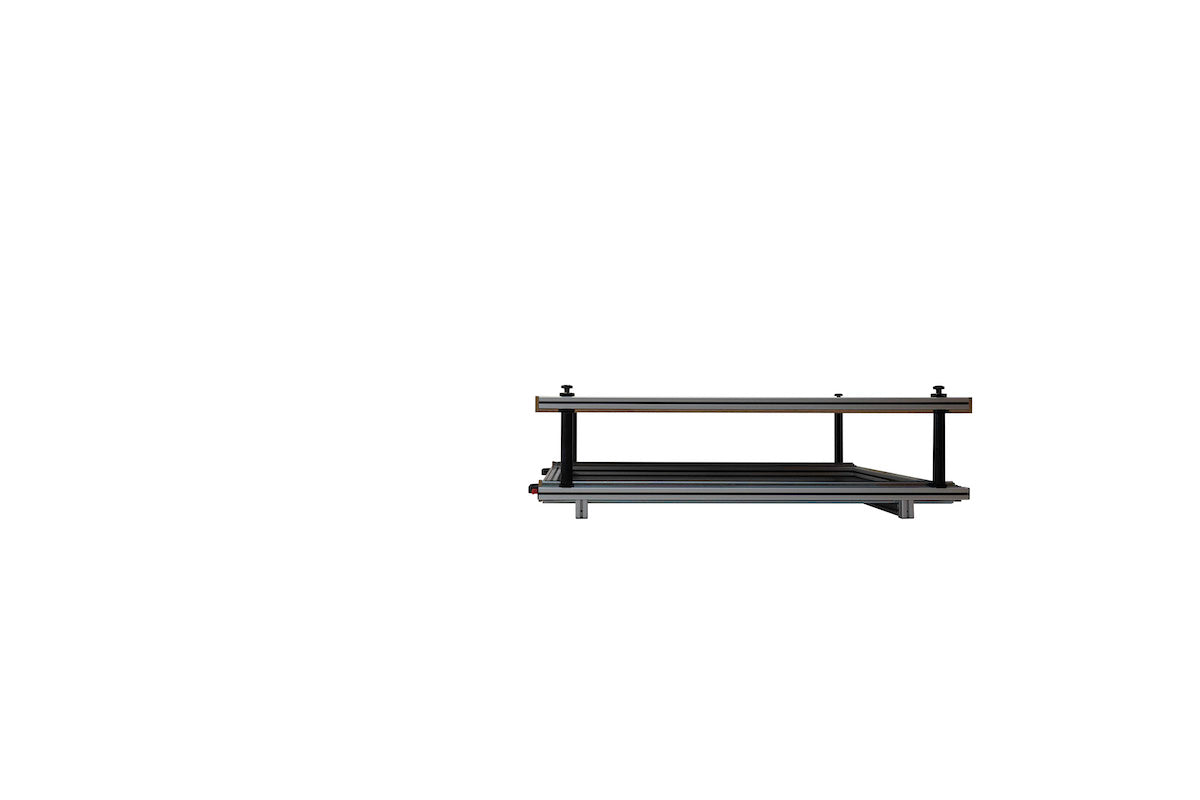

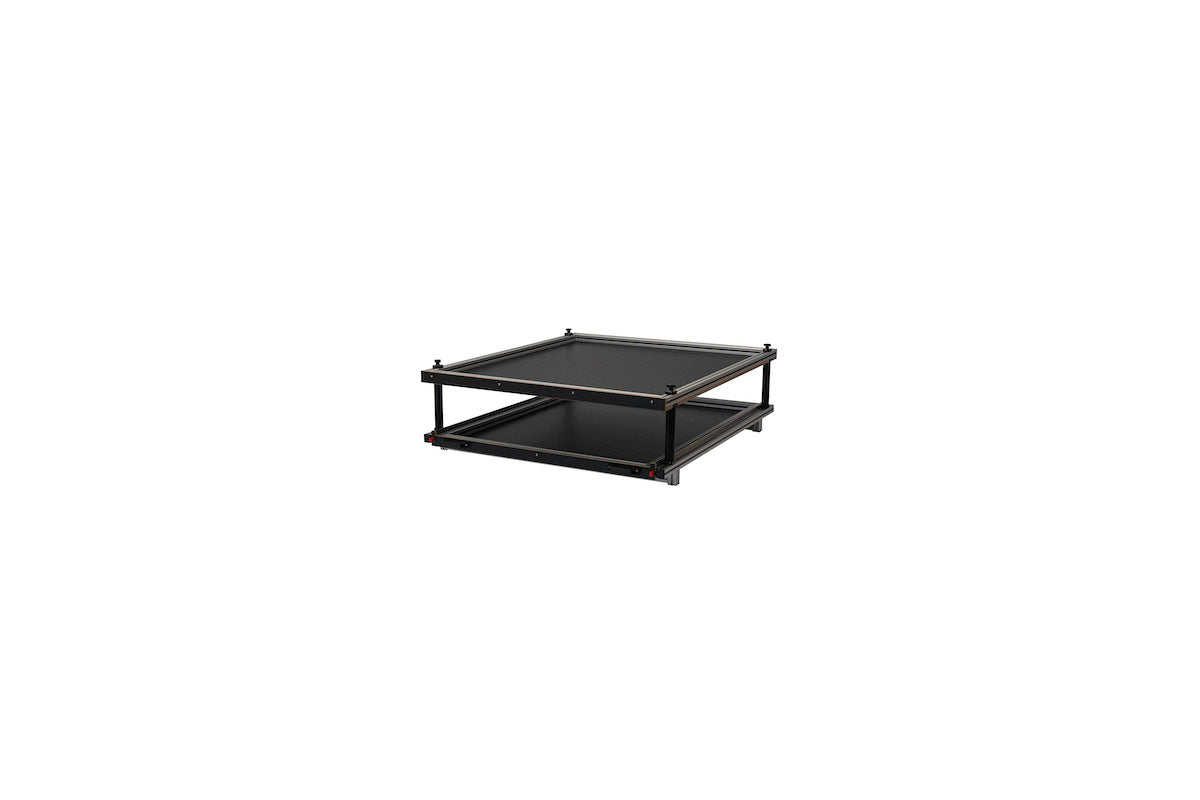

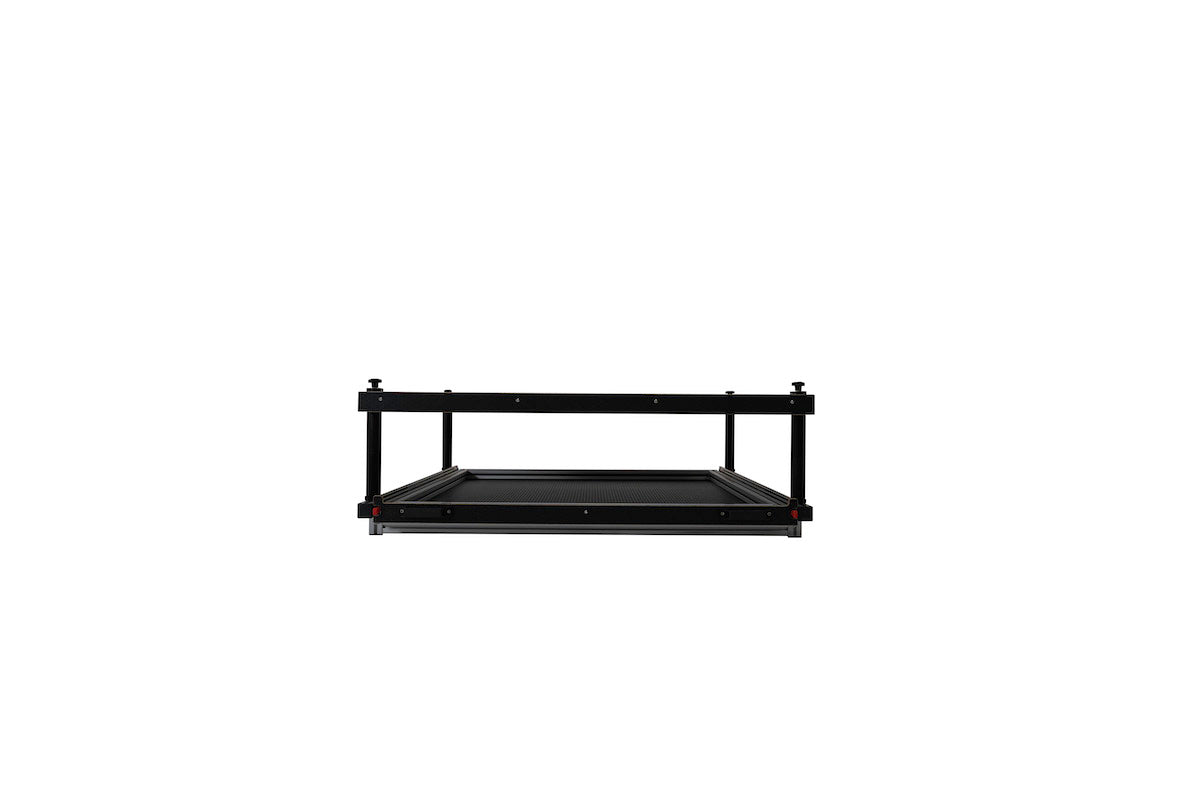

The top platform is connected to the base tray with our quick release system, the base tray has 4 x tapered location mounts which then have spacer posts attached with screw threads, the tray then locates onto the posts via the Male/Female tapered joints, then tightened with 4 x finger knobs.

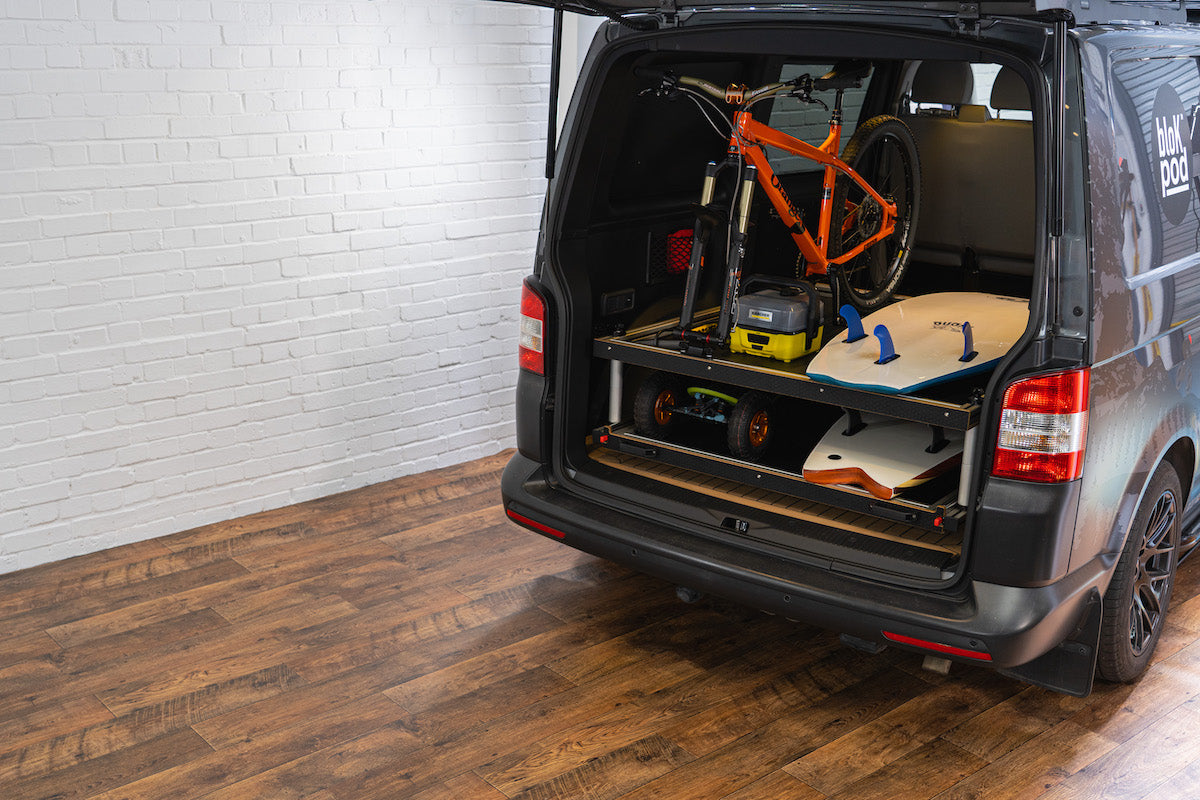

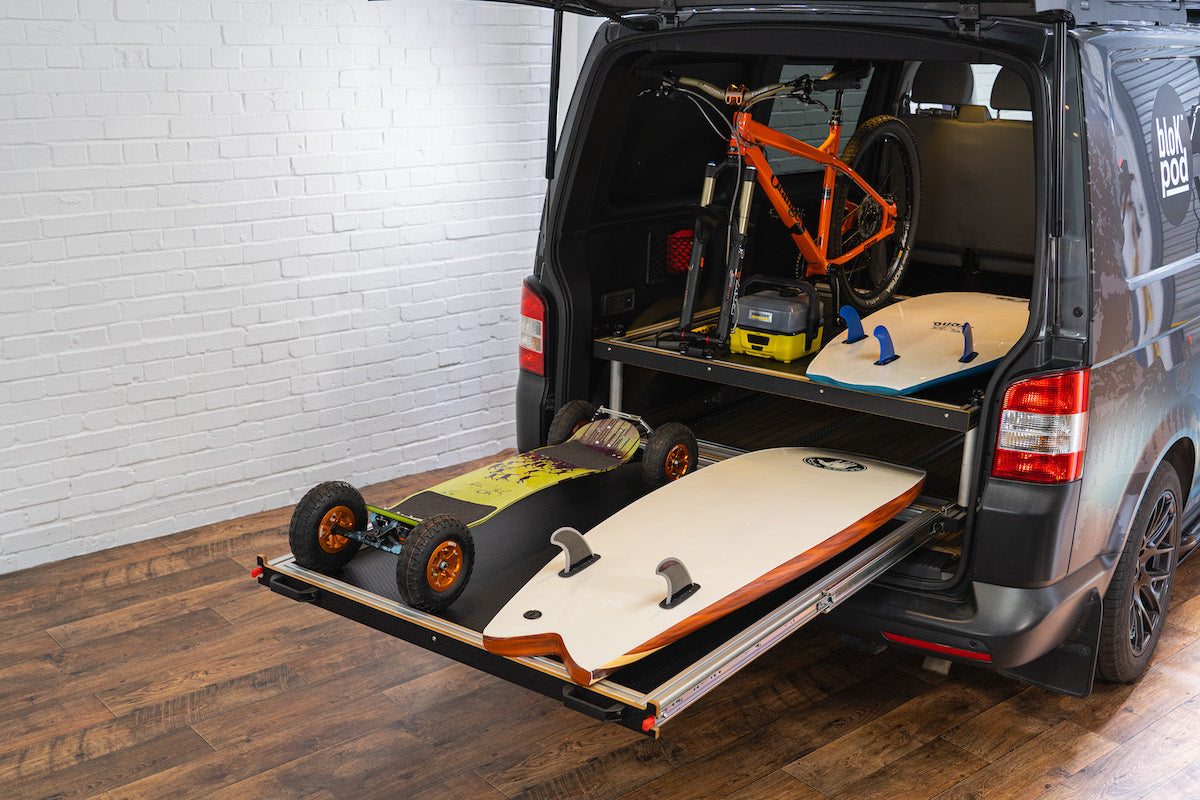

We supply spacers with just the right amount of height to get euro boxes on the base tray and enough clearance on the second level for the largest of bikes.  If you need more space below then additional spacers can be purchased and added to what you have.

The sliding trays we produce are constructed from an anodised aluminium extrusion which have slots for drop in sliding T nuts (M4, M5, M6 and M8) so adding mounting points is simple. The drawer runners we use are a heavy duty lockable runner that can take weights of up to 230kg (depending on size).

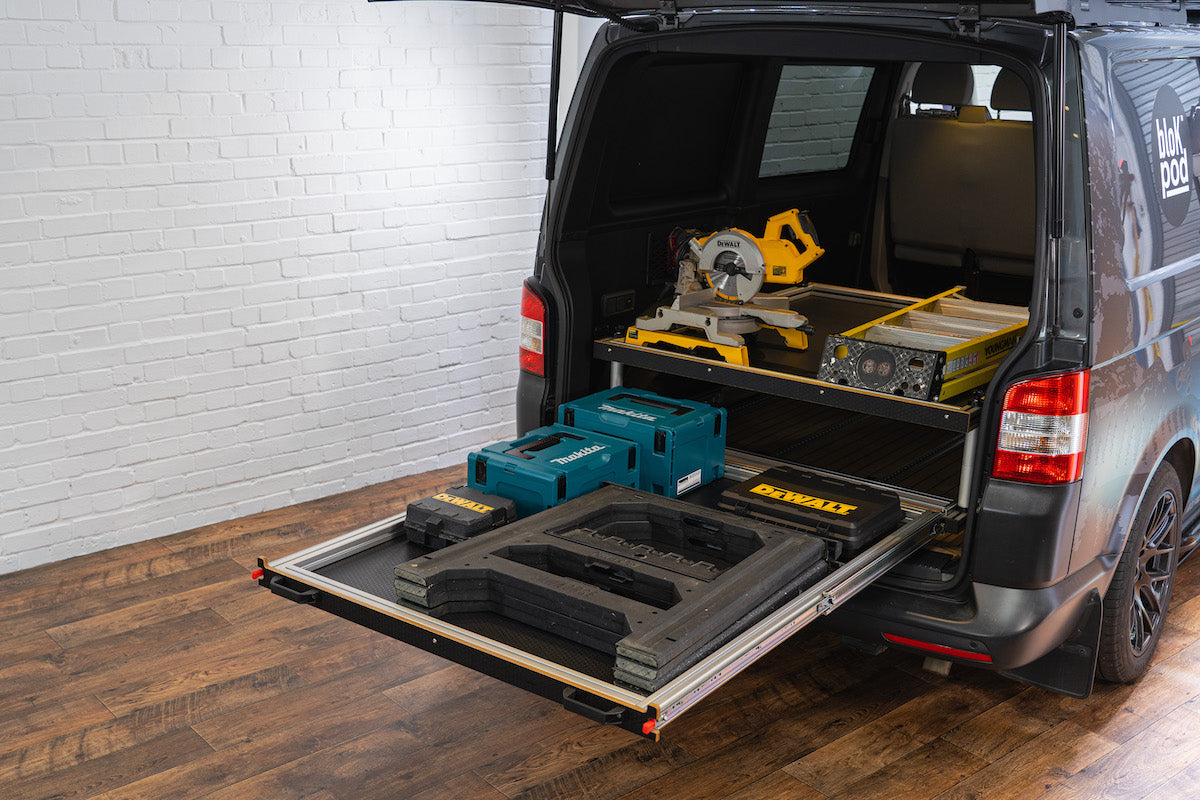

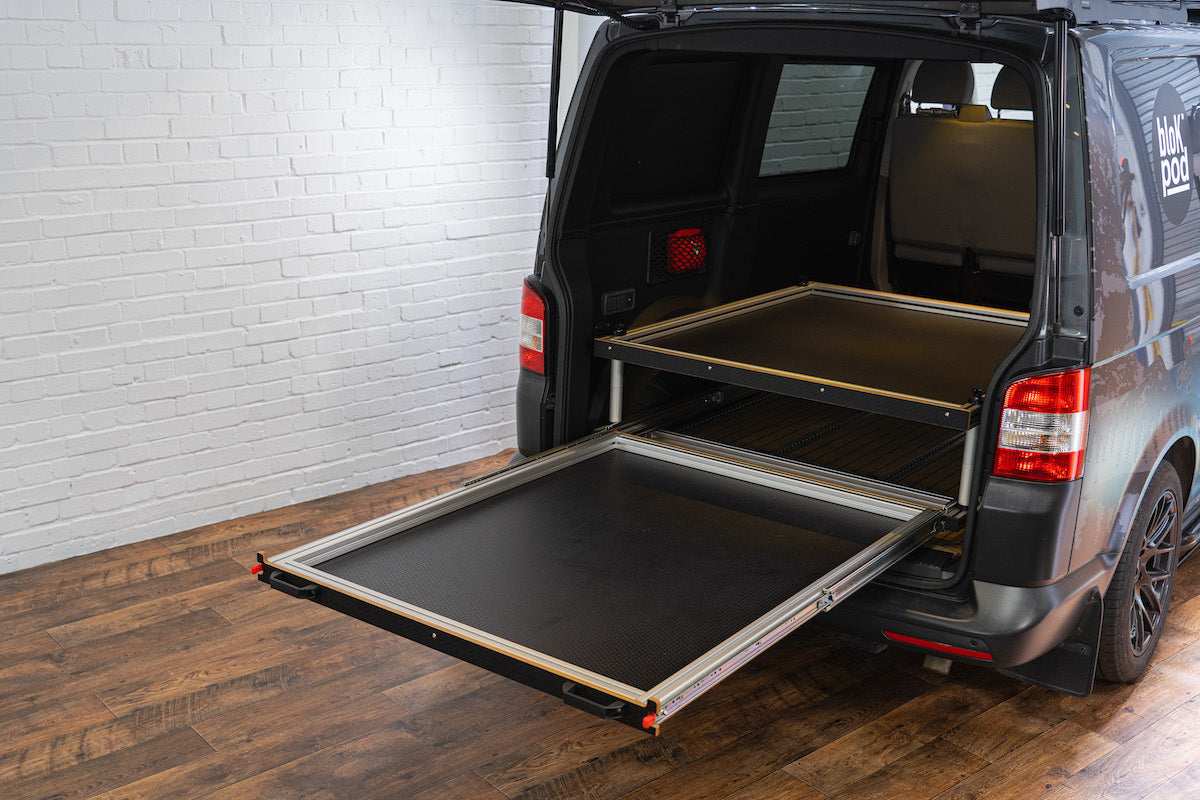

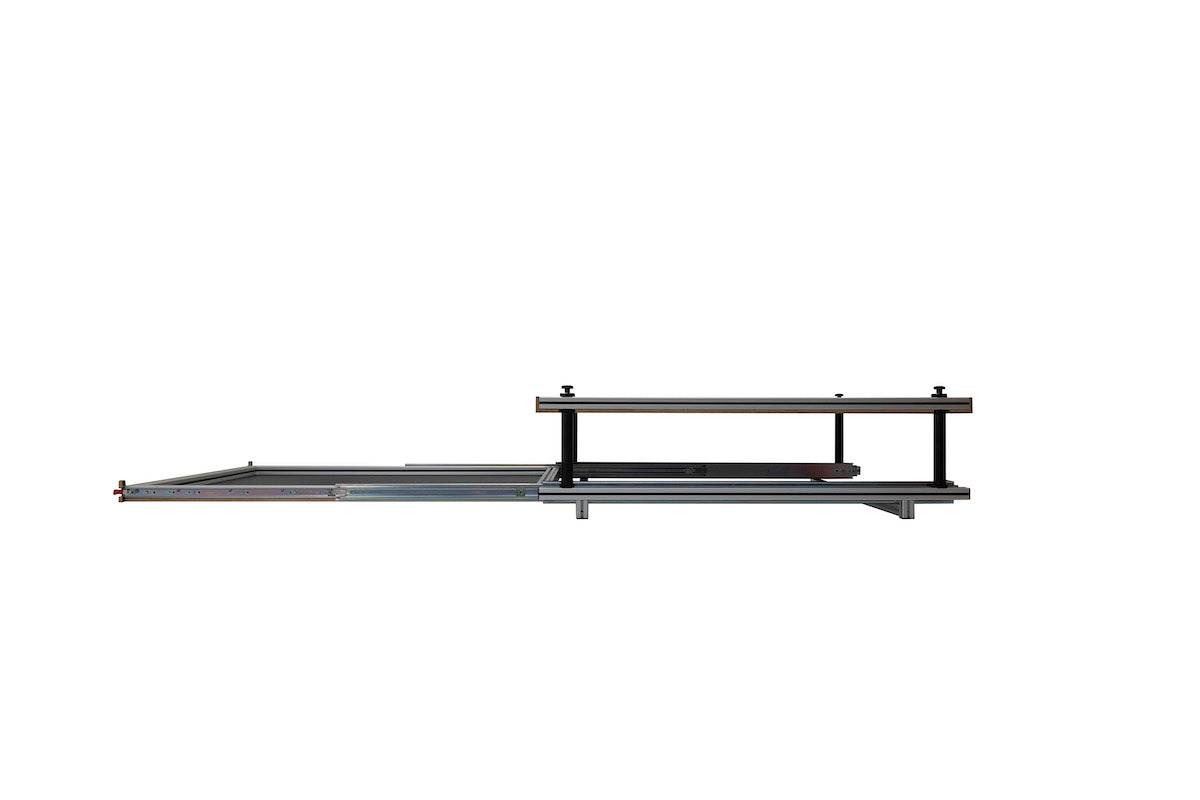

To extend the tray from its stored position all you need do is depress the two red locking levers and pull, when fully extended the tray will lock automatically, to release do the same in reverse.

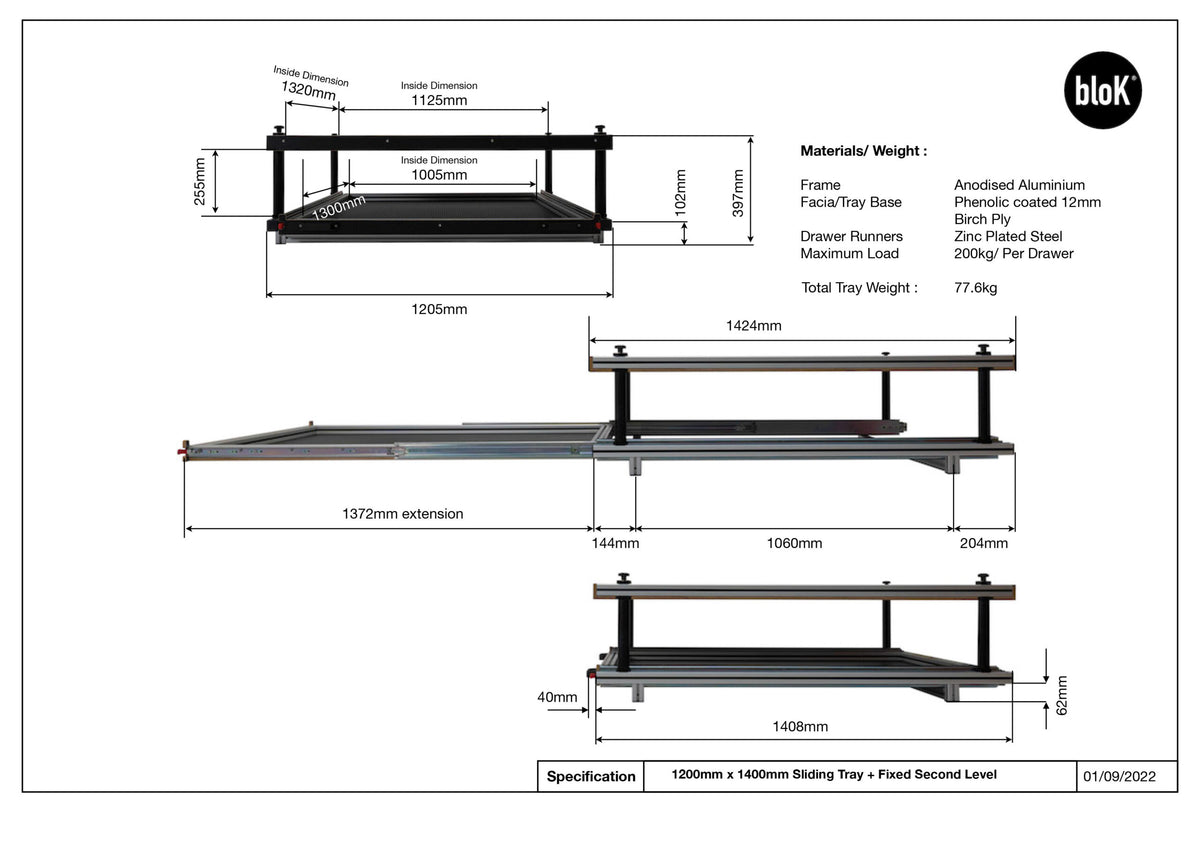

Sliding Tray Sizes/ Weights Base :

• External Frame Width 1205mm
• External Frame Depth (including handles) 1448mm
• External Frame Depth (excluding handles) 1408mm
• Sliding tray Extension 1372mm
• Internal Base Board Width 1005mm x Depth 1300mm
• Internal Tray Width 1085mm
• Internal Tray Depth 1380mm
• Tray Spacer Kit (8 x posts @ 115mm) 3.6kg
• Base Tray Weight 48kg
• Maximum Weight Load 200kg (evenly distributed)

Fixed Platform Sizes/ Weights Second Level:

• External Frame Width 1205mm
• External Frame Depth 1424mm
• Internal Base Board Width 1125mm x Depth 1320mm
• Platform Weight 26kg
• Maximum Weight Load 200kg (evenly distributed)

Total Combined Weight 77.6kg What you get:

• 1 x Sliding Tray Width 1205mm x Depth 1448mm (Base) (***Vehicle fixing kit not supplied and can be purchased separately***)
• 1 x Fixed Platform Width 1205mm x Depth 1424mm (Second Level with QR fittings)
• 1 x Tray Spacer Kit (8 x posts @ 115mm)

**This product is made to order, lead time 7-10 working days**
