Mercedes V-Class – 1200mm Fork Mount Rail Twin T-Slot – Fits Factory Fitted Rails

*Designed to work with your Mercedes Factory Fitted Rails

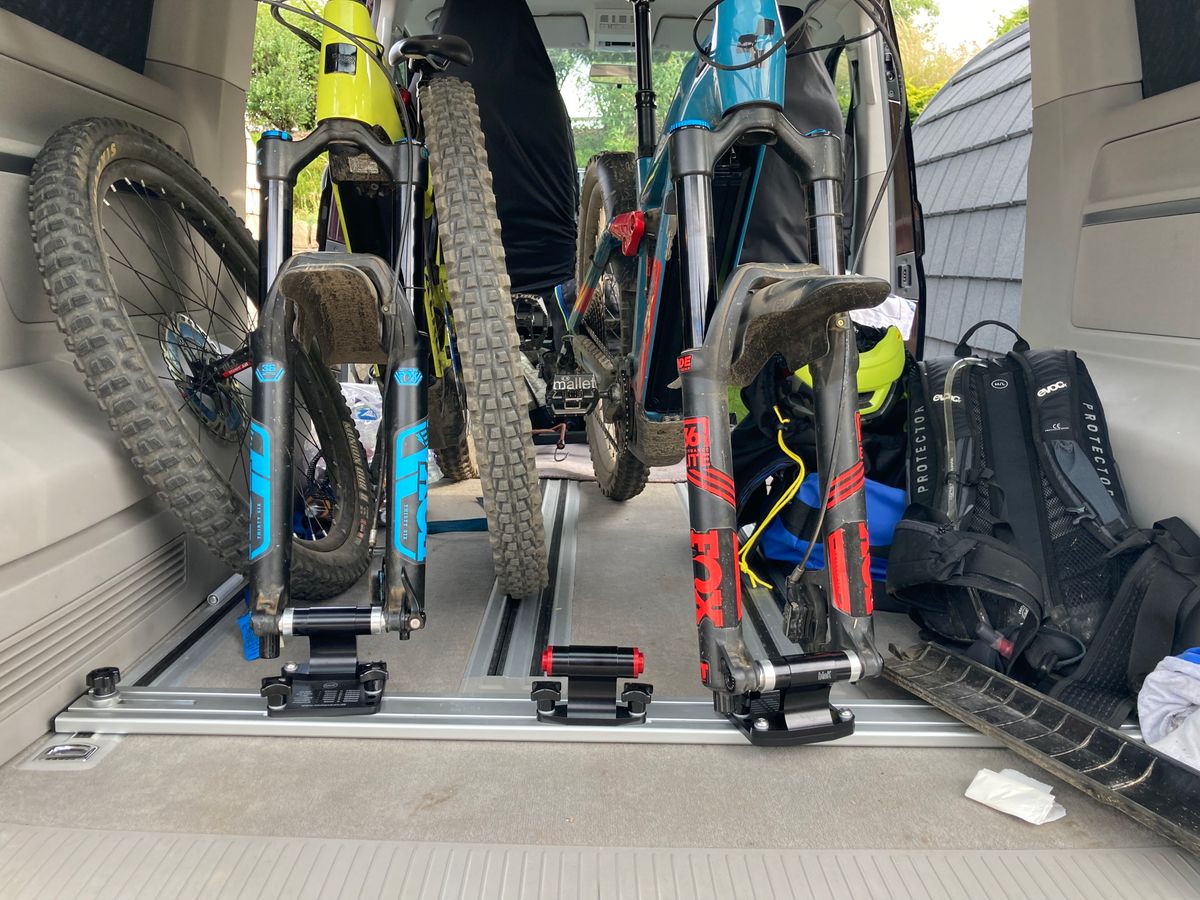

Its a simple idea….. The vehicle has factory fitted rails so why not use them to mount your multiple steeds !! One twin slot rail 1200mm long with quick release fitting.

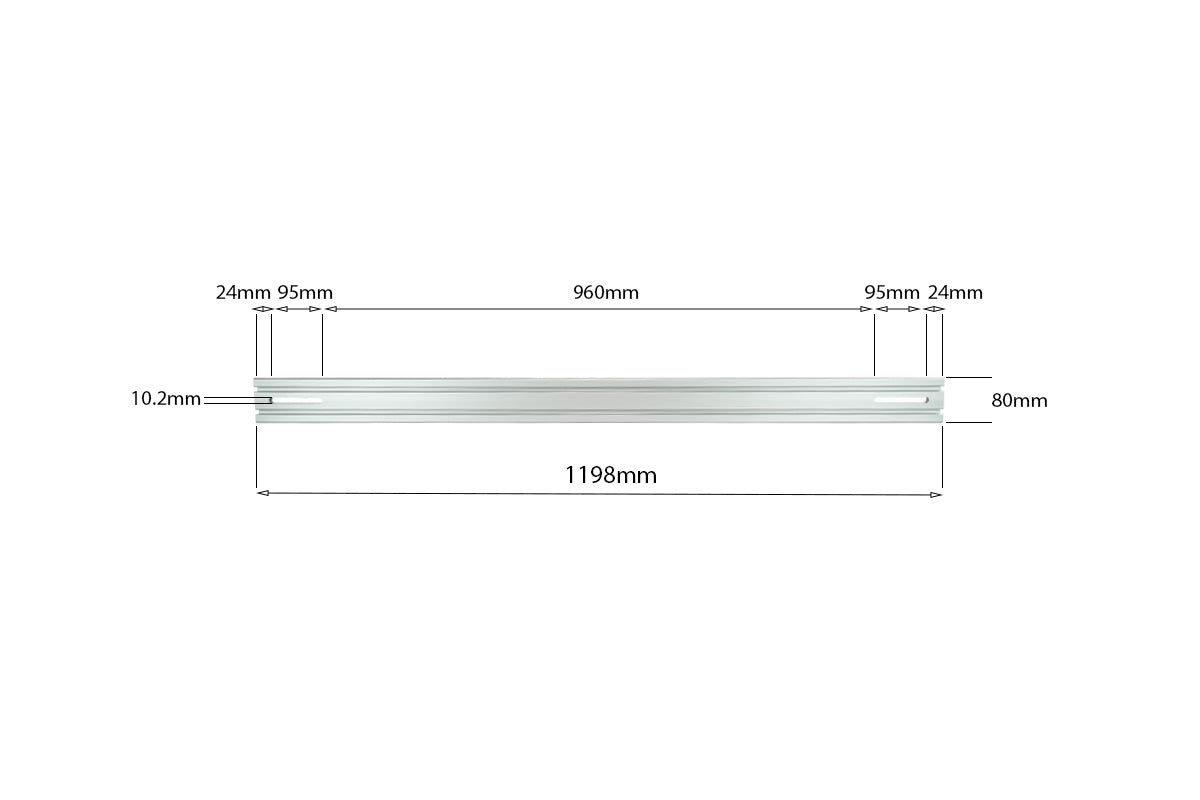

We supply a piece of 80mm wide x 16mm high x 1200mm long extrusion that has twin t-nut slots and 2 x end caps.  There are 2 x 10mm wide x 100mm long machined slots at each end to give a bit of adjustment when fitting to the vehicles factory fitted rails.

How To Fit

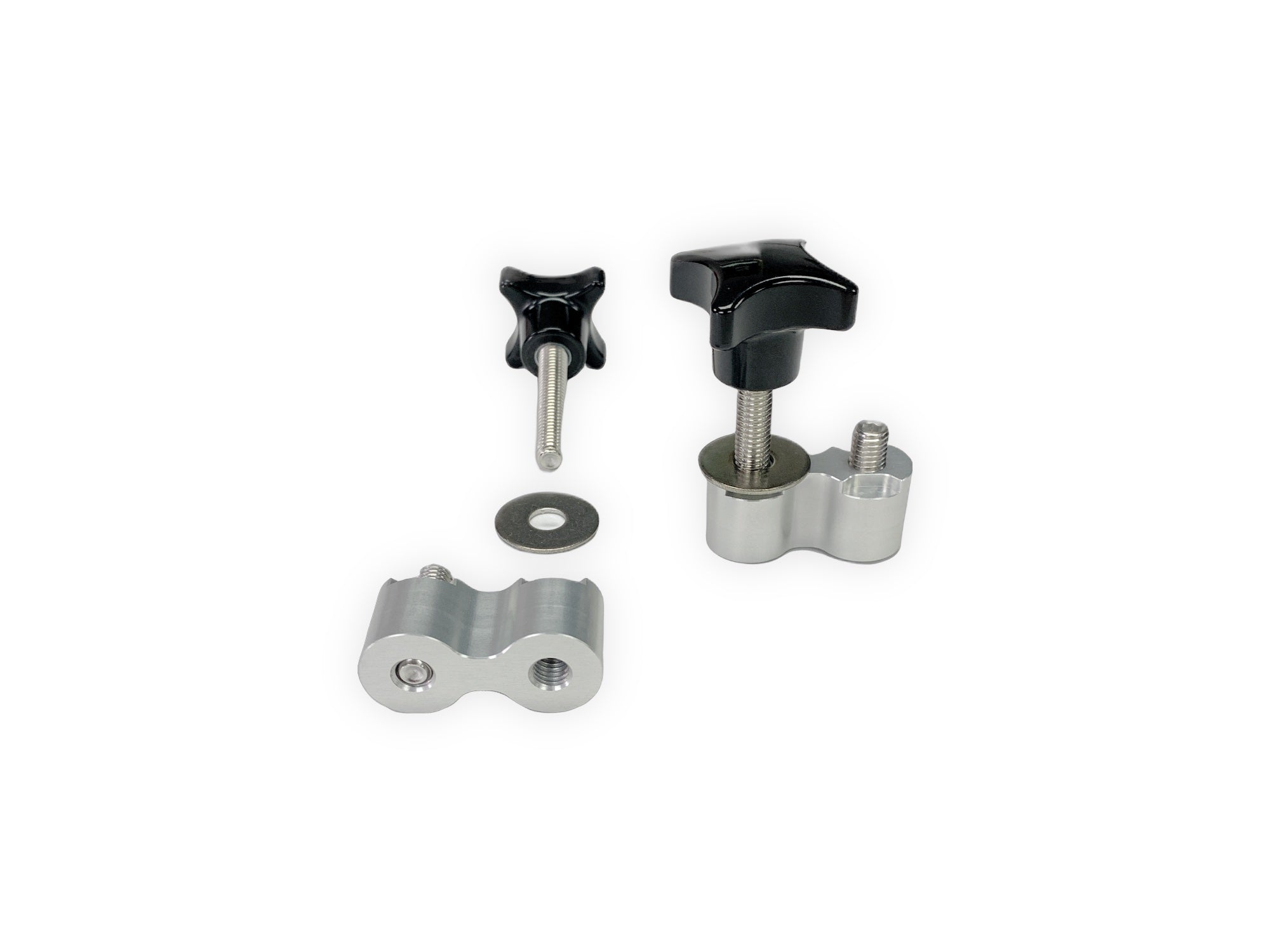

Place the figure of eight T Nut into two of the round bores of your rail it can then be slid under the extruded profile, the T Nut can be secured in place by winding the internal screw so it hits the bottom of the rail which in turn jacks the T-Nut up and engages into the underside of your vehicle rail, repeat this process on the opposite rail, you now have fixed threads to mount the rail.  Place the rail over the thread of the T- Nut, add a washer then screw the finger knob assembly in, to secure.

Specification:

1200mm Rail has a fitting pitch from centre to centre of fixing point of 1010mm – 1140mm, if this doesn’t work for you then get in touch and we will see what we can do to help

What you get:

• 1 x 80mm wide x 16mm High x 1200mm Long Twin T-Slot Extrusion Rail with slots each end
• 2 x End Caps

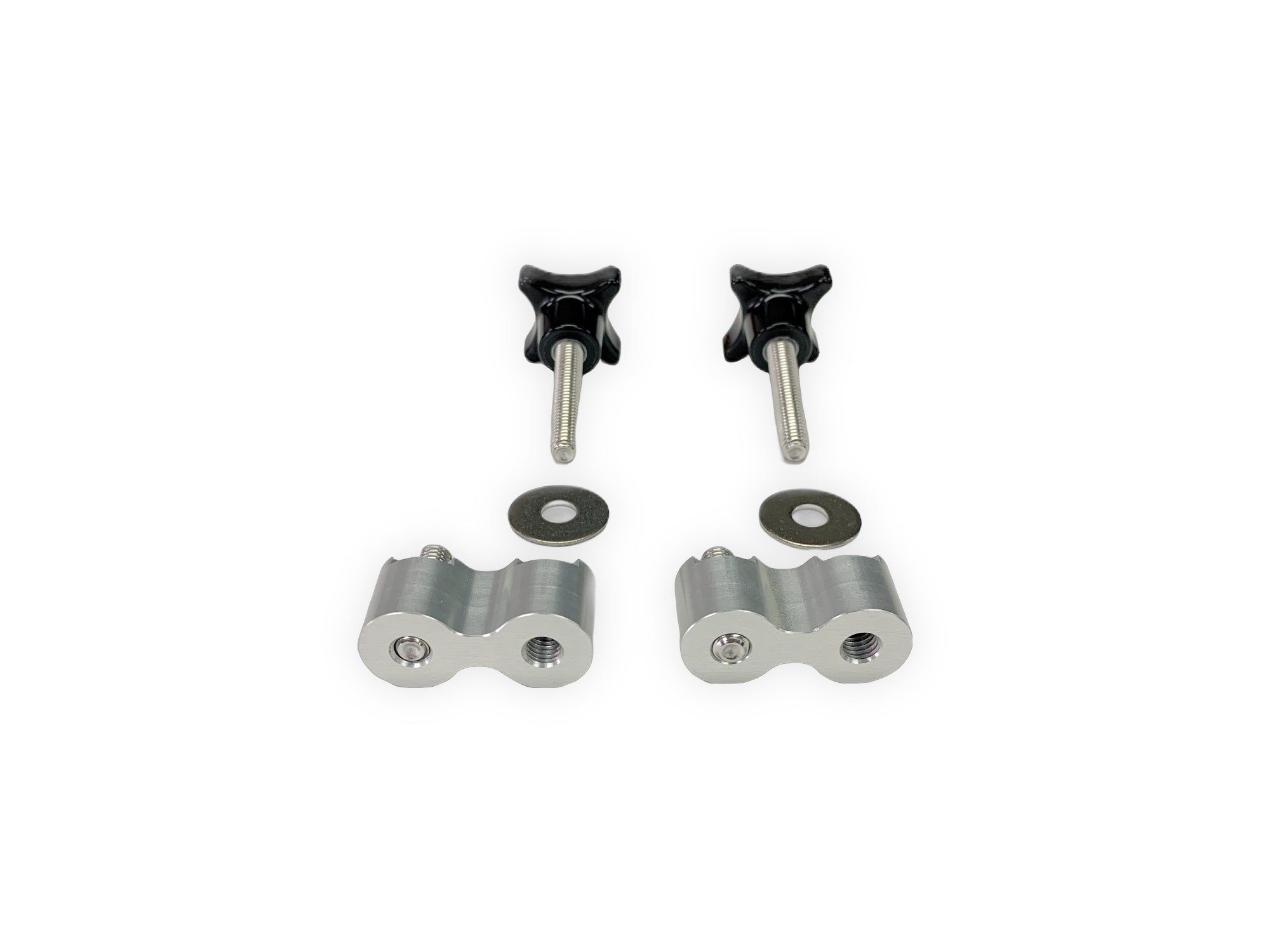

• 2 x M8 Figure of Eight T-Nuts
• 2 x M8 Finger Knob Assembly
• 2 x M8 Penny Washers
• 2 x M8 x 30 Jacking Screws
